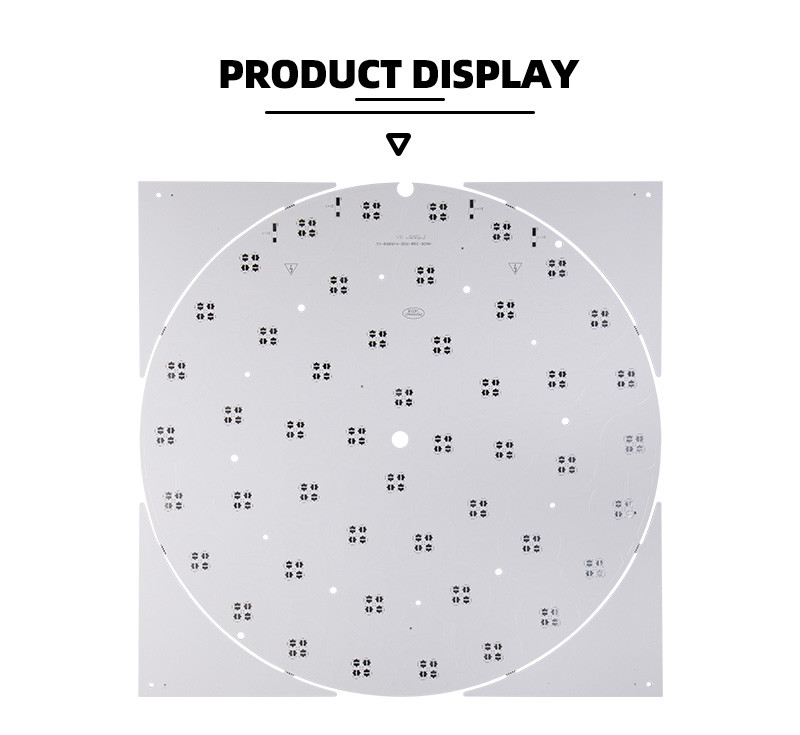

LED Panel Light HASL Lead Free Dob Aluminum PCB 18w Custom PCBA
led panel light 18w custom PCBA bul light pcb led dob aluminum pcb
Performance of Aluminum PCB:
1. Thermal Dissipation
Common PCB substrates, such as FR4, CEM3 are poor conductors of thermal. If the heat of electronic equipments cannot be distributed in time, it will result in high temperature failure of electronic components. Aluminum substrates can solve this thermal dissipation problem.
2. Thermal Expansion
Aluminum substrate PCB can effectively solve the thermal dissipation problem, so that the thermal expansion and contraction problem of components on printed circuit boards with different substances can be alleviated, which improves the durability and reliability of whole machine and electronic equipments. In particular, aluminum substrate can solve the SMT (surface mount technology) thermal expansion and contraction problems.
3. Dimensional Stability
Aluminum substrate printed circuit board has apparently higher stability than the insulating material of the printed circuit board. When heated from 30 ° C to 140 ~ 150 ° C, the dimensional change of aluminum substrate is only 2.5 ~ 3.0%.
4. Other Performance
Aluminum substrate printed circuit board has shielding effect, and can alternative brittle ceramic substrate. Aluminum substrate also helps to improve the heat resistance and physical properties and reduce production costs and labor.
| Layer | 1-2 layers |
| Board thickness | 0.2mm-6.0mm |
| Copper thickness | 0.5oz-6.0 oz |
| Max board size | 600 x 1200mm |
| Min. hole diameter | 0.1mm |
| Min. line width | 0.075mm |
| file format | pcb,doc,ddb etc |
| MOQ | 1 piece |
| Base material | FR-4,TG, CEM-1, CEM-3, Aluminium,94V0, 94HB |
| Solder mask | green, red, blue, yellow, black, white etc |
| Surface finish | ENIG, ImAg, ImSn, OSP, HASL, lead free,immersion gold,Gold-plate etc |
FAQ:
Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.
Q3: Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is 1pcs.
